idfive Component Library (ICL)

A collection of components to be used to begin new front-end development projects. This library is synced-up manually to the Drupal Accelerator and to the Wordpress Accelerator sites.

Overview (What's Included)​

Staging Site​

The library can be viewed on our Netlify site.

Download A Copy​

To download the starter visit the Bitbucket Repo Downloads - Tags and under "Download", select a zip file of the latest tag. Downloading this way as opposed to cloning the repo will remove the git tracking (so it can be connected to the new project) and ensure that the latest intended version is pulled (new versions tagged when ready for production).

Installation​

Node.js is the backbone of our frontend build process. Node Version Manager (NVM) is used to manage versioning (install instructions from GitHub):

  • Version 20.19.0 is the latest version used with the Astro version of the ICL
  • Version 19.0.0 is used for last version of the Pattern Lab Starter (all Pattern Lab projects)
  • Version 12.20.0 Is used for most older Fractal projects

In a terminal window at the root of the ICL - run the following commands:

  • nvm use
  • npm install
  • npm run dev

This will open the "Welcome page", changes made in code will automatically be refreshed/reflected in the browser.

Interface​

Overview​

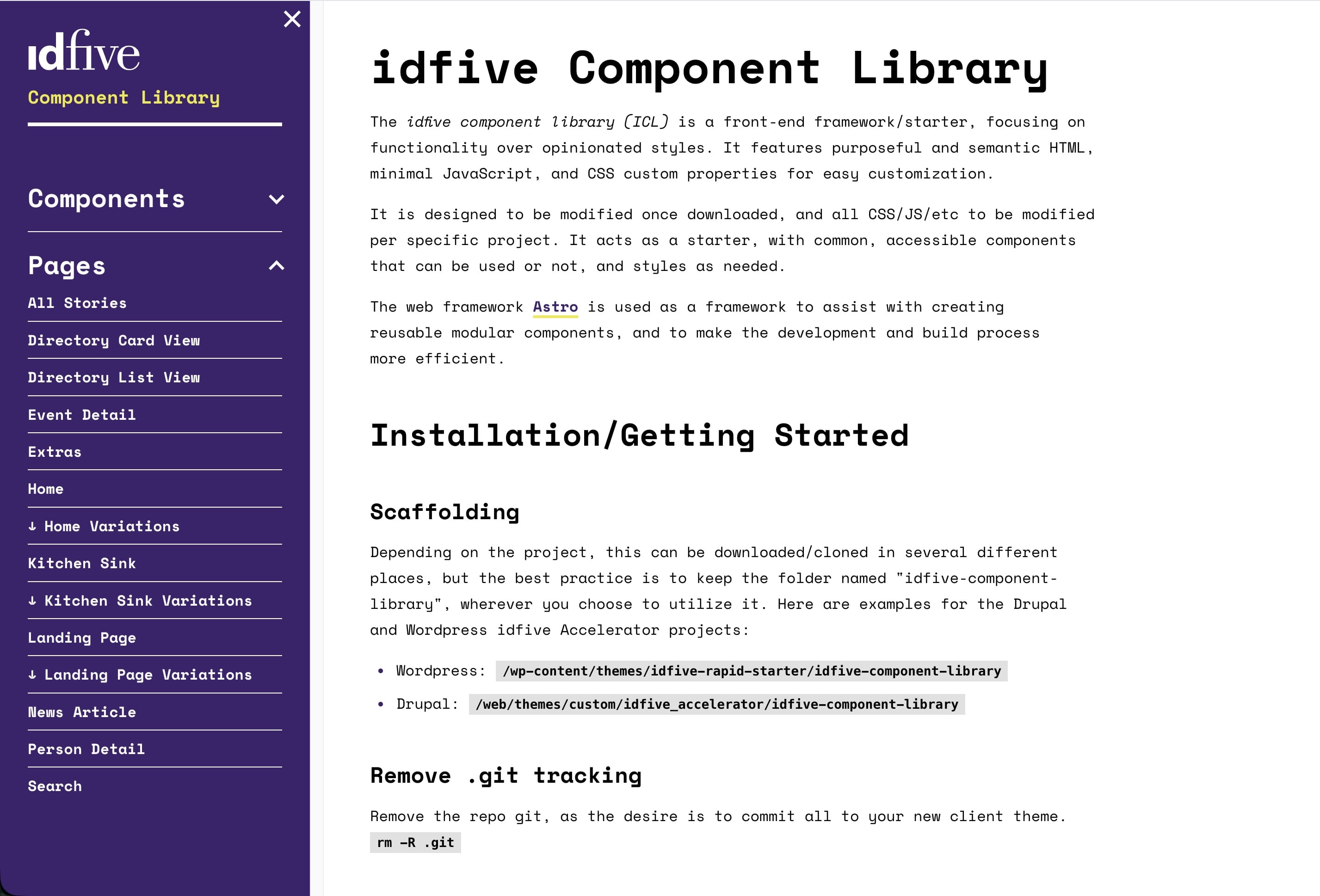

The ICL Pages and Component list is a custom interface created and maintained by idfive and contains:

  • The idfive logo and link to site, and title of the library
  • A list of all available components, each is clickable to view the rendered component in th elist
  • A list of the pages available in the library (as well as variations if available) with links that open in new Tabs

XD SVG

Component​

The Pages and Component list is a component file called ICL-Component-Page-List.astro, located at src/components/_icl-component-page-list/ICL-Component-Page-List.astro.

The component does the following:

  • Dynamically generates a list of components
  • Outputs the markup for the list of pages and components
  • Styles the component, all css is contained in <style> tags in this component, to prevent the styles from being added to the main css file output for the library. These styles are scoped by Astro.
  • Adds JavaScript functionality to handle the <details> (accordion) elements that handle the collapsing of pages, comonents and variations in the list. This is contained in <script> tags to prevent this JS from being included in the main js output file for the library.

To add a component or page to the list, see Adding A New Page to the ICL List

Welcome Page (index.astro)​

  • The component is called in the index.astro file at src/pages/index.astro.
  • This file also contains the "Welcome Page", as it is the root of the ICL. This page contains basic instructions regarding how to spin up the library locally.

Notes​

  • The ICL Pages and Component list uses the standard <Layout> that all pages of the site use
  • The Layout.astro file contains some conditionals that occur when the ICL Pages and Component list is present on the page
    • Emergency Alert hidden
    • Site Header hidden
    • Site Footer hidden
    • The <div class="outer-pad"> is not output within <main>

Build​

  • Run npm run build
  • To preview the build (/dist directory) run npm run preview

Folder Structure​

  • dist is the build folder, the static assets and pages are re-created here when npm run build is run
  • public static folder where images and favicons (any assets needed) can be placed and accessed as needed
  • src:
    • assets:
      • CSS contains css partial files, compiled into index.css (see css documentation for more information)
      • JS contains all typescript modules:
        • components contains individual modules for respective components (when required for functionality)
        • utilities contains helpful accessibility functions that can be used to simply certain tasks
        • main.ts imports all functions and calls init functions for each (this file gets compiled into one on build)
    • components contains the .astro source files for components
    • data:
      • global.json data for use throughout site that will not change, for example the site header and site footer data
      • *.json data used for all pages of the site, as well as variations on pages (see kitchen sink or home for example)
    • icl-utils contains utility scripts for ICL usage, not to intended to be edited unless absolutely needed
    • layouts/Layout.astro the main page structure layout that is used on every page of the site
    • pages contains the .astro source files for pages. The files in the /components subdirectory are solely for display in the ICL Pages/Component list view only and not intended to be edited

Data​

Component Data​

Data on the component level is structured in stored in the same directory as the component's .astro file. For example, the button-set component's astro template:

src/components/button-link-set/Button-Link-Set.astro
  ---
  const { buttonLinkSet } = Astro.props;
  import data from './button-link-set.json';
  const buttonLinkSetData = buttonLinkSet || data.button_link_set;
  import Button from '../button/Button.astro';
  import PrimaryLink from '../primary-link/Primary-Link.astro';
  ---

  <div class="button-link-set">
    <ul>
      {buttonLinkSetData.type === "button" ? (
        buttonLinkSetData.items.map((button: any) => (
          <li>
            <Button button={button.button} />
          </li>
        ))
      ) : buttonLinkSetData.type === "link" ? (
        buttonLinkSetData.items.map((link: any) => (
          <li>
            <PrimaryLink primaryLink={link.primary_link || link.button} />
          </li>
        ))
      ) : null}
    </ul>
  </div>

Note: as seen in the example, components can be nested within other components

The corresponding component data can be found in json file in the same directory at ./button-link-set.json, called in the line import data from './button-link-set.json';

src/components/button-link-set/button-link-set.json
{
  "button_set": {
    "buttons": [
      {
        "button": {
          "text": "Button One",
          "url": "https://idfive.com/"
        }
      }
      // rest of json data
    ]
  }
}

The json data object should be named similarly to the component ("button_set" in this case), in order to call it properly when included on a page.

Page Data​

Each page has a corresponding json file. The Kitchen Sink page (src/pages/[kitchenSink].astro) data is in the same directory (src/data/kitchen-sink/kitchen-sink.json). The json file starts with:

src/data/kitchen-sink/kitchen-sink.json
{
  "title": "Kitchen Sink",
// rest of json data
  • The title corresponds to the <title> attribute

Including Components on a Page With Unique Data​

  • To include a component on a page the syntax is <ComponentName componentName={data.page_component_name.component_name}></ComponentName>
  • For example - calling the button-set component:
<ButtonLinkSet buttonLinkSet={data.kitchen_sink_button_set.button_link_set}></ButtonLinkSet>
  • The with portion allows for a unique instances of the data (so that multiple instances can be called with different data), give it a logical name (it can be the same name as the component itself - but depending on the context can be confusing)
  • In the Kitchen Sink json file, this would appear as:
src/data/kitchen-sink/kitchen-sink.json
{
  "title": "Kitchen Sink",
  //  other json data
  "kitchen_sink_button_set": {
    "button_set": {
      "buttons": [
        {
          "button": {
            "text": "Button One",
            "url": "https://idfive.com/"
          }
        },
        {
          "button": {
            "text": "Button Two",
            "url": "https://idfive.com/"
          }
        }
      ]
    }
  }
  // rest of json data
}

Variants (Page & Component)​

Currently only page variations are supported. Component variations may become supported at a later time.

In order for an Astro page to support variations, the page name must be contained in brackets []. For example, the Kitchen Sink page is called [kitchenSink].astro. In the frontmatter (at the top of the template between the --- and closing ---), the following code is used to support and create variations:

/src/pages/[examplePageName].astro
  // import the deep merge utility to merge json files
  import { deepMerge } from '../icl-utils';

  export async function getStaticPaths() {

    // Import JSON files
    const pageNameData = await import('../data/page-name/page-name.json');
    const pageNameVariationData = await import('../data/page-name/page-name-variation.json');

    // Use the first declared data as the default/base data
    const defaultData = pageNameData.default;

    return [
      // First page uses full default data
      // in this example the urls created be /page-name and /page-name-variation
      { params: { pageName: 'page-name' }, props: { data: defaultData } },

      // Other pages deep merge default with their overrides
      { params: { pageName: 'page-name-variation' }, props: {
        data: deepMerge(defaultData, kitchenSinkWithSubnavData.default)
      }}
    ];
  }

  // Save the merged data for use with components on page
  // for example the "data." here: <ComponentName componentName={data.page_component_name.component_name} />
  const { data } = Astro.props;

Generating Components In Astro​

To create a new component in Astro, run the following command in a terminal at the root:

npm run create-component "component name"

Where "compoennt name" is the desired name of the component being created. This command will do perform a number of tasks:

  • Creates a new directory in src/components with spaces in the supplied name converted to hyphens
  • Creates a new .astro file in this directory using PascalCase for the supplied name
  • Creates a new .json file in this directory with spaces in the supplied name converted to hyphens
  • Imports the data to the .astro file
  • Creates a div with the component class (with spaces in the supplied name converted to hyphens) in the .astro file
  • Adds an empty object in the .json file with the supplied name spaces converted to underscores
  • Creates a new page for the component (in order for it to be viewed in the ICL Components/Pages list)

The component will automatically be added ot the ICL Components/Page list

Creating a page for a component​

By default components in Astro do not have their own viewable pages, they need to be added to the page.

Running the command above will create this page. However, there may be some times when a page is needed to be created without running the above command.

In order to do this run:

npm run generate-component-pages

This will check for components that have pages. If a component does not have a page it will:

  • Creates a new .astro page in the src/pages/components directory using the component name converted to Kebab case
  • Imports the layout and adds to the newly created page
  • Imports the component
  • Imports the ICL Component/Page list component
  • Outputs the component in the template

The component will automatically be added ot the ICL Components/Page list.

Adding A New Page to the ICL List​

Creating a new page is manual process. The newly created page will need to be added to the ICL Components/Page list in the ICL-Component-Page-List.astro file.

Page Without Variations​

For example, adding the all-stories.astro to the list:

src/components/_icl-component-page-list/ICL-Component-Page-List.astro
<details class="icl-component-page-list__section-details" open>
  <summary><h2>Pages</h2></summary>
  <ul class="icl-component-page-list__section-details-list">
    <li>
      <a href={`${import.meta.env.BASE_URL}all-stories/index.html`} target="_blank">All Stories</a>
    </li>
    // rest of code

Page With Variations​

Adding a page that has variations to the list requires viewing the urls from the getStaticPaths function in the frontmatter of the respective page.

For example, adding the [kitchen-sink].astro to the list requires viewing the export async function getStaticPaths() params in the template to get the urls:

src/pages/[kitchenSink].astro
// other code above - this is only showing a section
{ params: { kitchenSink: 'kitchen-sink' }, props: { data: defaultData } },
{ params: { kitchenSink: 'kitchen-sink-with-subnav' }, props: {
  data: deepMerge(defaultData, kitchenSinkWithSubnavData.default)
}},
{ params: { kitchenSink: 'kitchen-sink-hero-no-image' }, props: {
  data: deepMerge(defaultData, kitchenSinkHeroNoImgData.default)
}}
// other code below
  • The kitchenSink: 'kitchen-sink' shows a path of /kitchen-sink
  • The second item kitchenSink: 'kitchen-sink-with-subnav' shows a path of /kitchen-sink-with-subnav — The third item kitchenSink: 'kitchen-sink-hero-no-image' shows a path of /kitchen-sink-hero-no-image
  • And so on...

These urls can be added to ICL-Component-Page-List.astro similarly to the above example, but in a nested <details> element:

src/pages/[kitchenSink].astro
<li>
  <a href={`${import.meta.env.BASE_URL}kitchen-sink/`} target="_blank">Kitchen Sink</a>
</li>
<li>
  <details class="icl-component-page-list__variations-details">
    <summary class="icl-component-page-list__variations-summary"><span class="icl-component-page-list__variations-summary-icon">↓</span>Kitchen Sink Variations</summary>
    <ul>
      <li>
        <a href={`${import.meta.env.BASE_URL}kitchen-sink-with-subnav/`} target="_blank">With Subnav</a>
      </li>
      <li>
        <a href={`${import.meta.env.BASE_URL}kitchen-sink-hero-no-image/`} target="_blank">Hero No Image</a>
      </li>
      // rest of code
  • line 2: Add a link to the "default" (or "non-variant") version of the page — line 5 & Onward: Add a new <details> element with links in a nested <ul> with the variant links
